ASUS MB Sc LGA1200 TUF GAMING B460-PLUS, Intel B460, 4xDDR4, VGA

Výrobce: Asus

Kód: KMB10540

Typové označení výrobce : 90MB13N0-M0EAY0

GTIN (EAN): 4718017719735

Záruka: 36 Měsíců

sumarum.instocktable.warehouse	sumarum.instocktable.countstored
E-shop	42 ks
Prodejna P-4	0 ks

2 856,45 Kč s DPH

2 360,70 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Kontaktujte nás

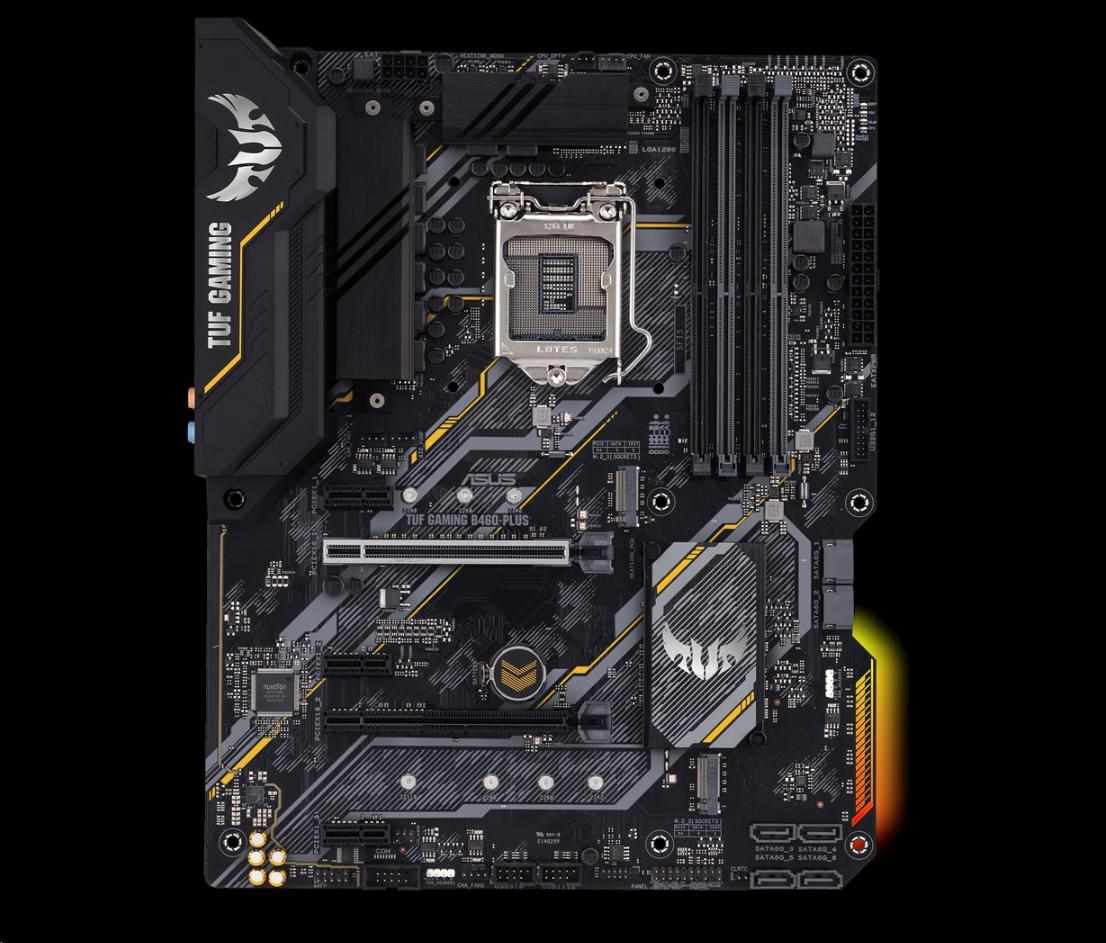

TUF GAMING B460-PLUS

Intel B460 (LGA 1200) ATX gaming motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting

Intel LGA 1200 socket
: Ready for 10th Gen Intel Core™ processors
Enhanced power solution
: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling
: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
Made for online gaming
: Intel Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
Realtek S1200A codec
: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
Aura Sync RGB Lighting
: Synchronizable LED effects across a vast portfolio of compatible PC gear.

TECHNICAL SPECIFICATIONS

CPU	Intel Socket 1200 for 10th Gen Intel Core™, Pentium Gold and Celeron Processors * Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B460
Memory	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane™ Memory Ready 2
LAN	Intel I219-V 1Gb Ethernet
Audio	Realtek ALC S1200A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB Ports	Rear USB Port ( Total 6 ) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility Digi+ VRM EPU Fan Xpert 4 - EZ update - PC Cleaner - System Information AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) DAEMON Tools Google Chrome Browser & Google Toolbar TUF GAMING CPU-Z WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design : - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution: - Aluminum heatsink design ASUS EZ DIY - Box Headers AURA Sync - Standard RGB headers
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.2 Gen 1 Type-A 6 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x M.2 SSD screw package(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	128 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. 2 Only the M.2_2 socket can support Intel Optane™ Memory Ready.

Specifikace produktů

Formát	ATX
Chipset	Intel
Integrovaná grafická karta	Ano (CPU)
Integrovaná LAN karta	1
PCI express 16x	1
Podpora RAID	1, 5, 10
Rozhraní	HDMI, USB 3.2, 3.5mm jack, LAN, DisplayPort
Socket (patice)	Socket 1200
Technologie paměti RAM	DDR4
