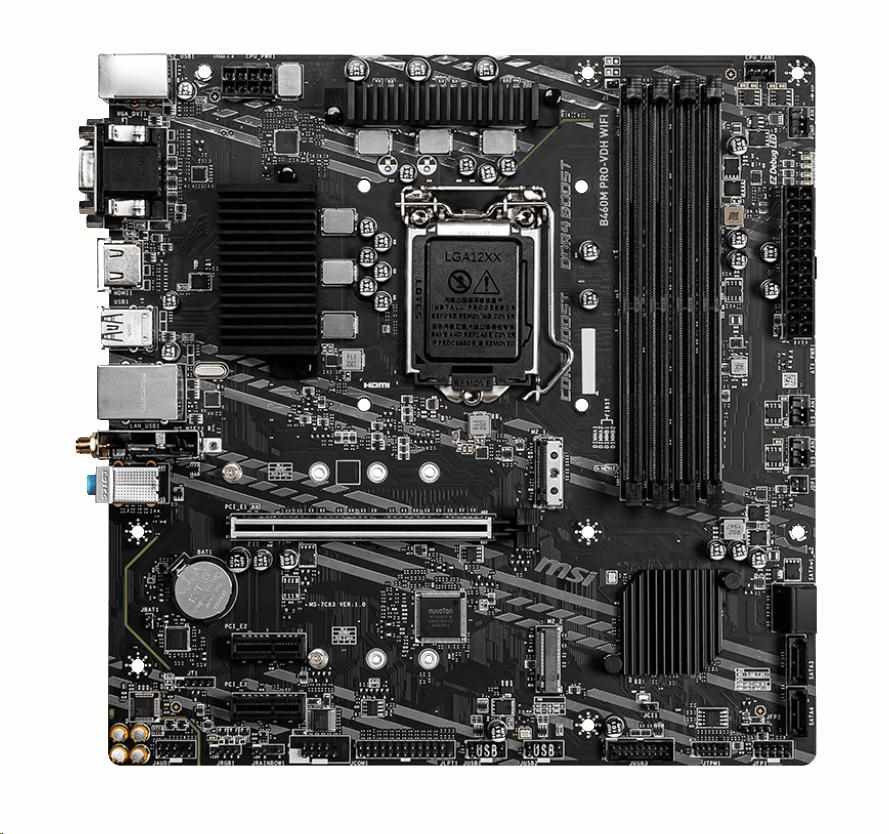

MSI MB Sc LGA1200 B460M PRO-VDH WIFI, Intel B460, 4xDDR4, VGA, mATX, WI-FI

• 4x DDR4 memory slots supporting up 128GB
• Intel Core™ i7/ i9
  - Support DDR4-2933 Memory (Max.)
• Intel Core™ i5 (Below)
  - Supports DDR4-2666 Memory (Max.)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1x PCIe 3.0 x16 slot (from CPU)
• 2x PCIe x1 slots (from PCH)

• 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
• 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz

• 4x SATA 6Gb/s ports*
• 2x M.2 slots (Key M)
  - M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices*
  - M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  - Intel Optane™ Memory Ready**
  - Supports Intel Smart Response Technology for Intel Core™ processors

* SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports 802.11 a/ b/ g/ n/ ac
• Supports Bluetooth 4.2

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

• 7.1-Channel High Definition Audio

• 1x Realtek RTL8111H Gigabit LAN Controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 2x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x parallel port connector
• 1x serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TPM module connector

• Keyboard / Mouse
• VGA
• LAN
• USB 2.0
• DVI-D
• HDMI
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 1 5Gbps Type-A
• Wireless / Bluetooth
• Audio Connectors

• mATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
