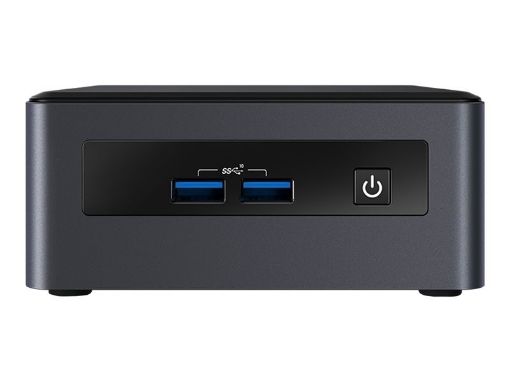

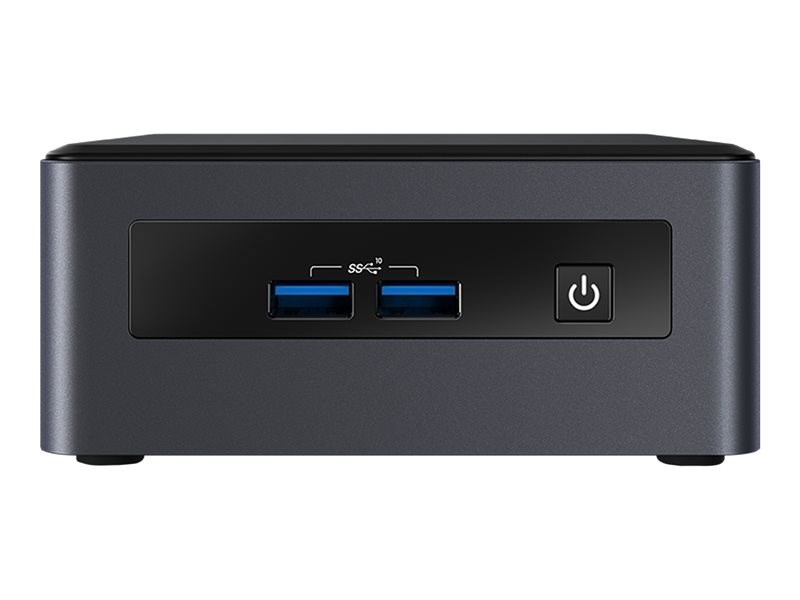

INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)

Výrobce: Intel

Buďte první, kdo napíše recenzi tohoto produktu

Kód: NTS4866

Typové označení výrobce : BKNUC8V5PNH

GTIN (EAN): 5032037180535

Záruka: 36 Měsíců

sumarum.instocktable.warehouse	sumarum.instocktable.countstored
E-shop	0 ks
Prodejna P-4	0 ks

12 437,95 Kč s DPH

10 279,30 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

Essentials
Product Collection	Intel NUC Kit with 8th Generation Intel Core™ Processors
Code Name	Products formerly Provo Canyon
Supported Operating Systems	Windows 10, 64-bit, Windows 10 IoT Enterprise, Windows Server 2019, Ubuntu 18.04 LTS
Board Number	NUC8v5PNB
Board Form Factor	UCFF (4" x 4")
Socket	Soldered-down BGA
Internal Drive Form Factor	M.2 and 2.5" Drive
# of Internal Drives Supported	2
DC Input Voltage Supported	12-24 VDC
Processor Included	Intel Core™ i5-8365U Processor (6M Cache, up to 4.10 GHz)
Intel vPro Platform Eligibility ‡	Yes
# of Cores	4
# of Threads	8
Processor Base Frequency	1.60 GHz
Max Turbo Frequency	4.10 GHz
Warranty Period	3 yrs
Supplemental Information
Description	Intel NUC 8 Pro Kit
Memory & Storage
Max Memory Size (dependent on memory type)	64 GB
Memory Types	DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels	2
Max # of DIMMs	2
ECC Memory Supported ‡	No
Processor Graphics
Processor Graphics ‡	Intel UHD Graphics
Integrated Graphics ‡	Yes
Graphics Output	Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4
# of Displays Supported ‡	3
Expansion Options
PCI Express Revision	Gen 3
PCI Express Configurations ‡	PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless)	22x30 (key E) slot
M.2 Card Slot (storage)	22x80 (key M) slot
I/O Specifications
# of USB Ports	4
USB Configuration	USB 3.1 (type C): 1 rear USB 3.1 (type A): 2 front, 1 rear USB 3.0: 1 header USB 2.0: 1 rear, 2 headers
Total # of SATA Ports	1
RAID Configuration	2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Serial Port via Internal Header	Yes
Integrated LAN	Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless‡	Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth	Yes
Additional Headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ 3 Ports	1 (Type C)
Package Specifications
Chassis Dimensions	117 x 112 x 53 mm
Advanced Technologies
Intel Optane™ Memory Supported ‡	Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel vPro Platform Eligibility ‡	Yes
TPM	Yes
TPM Version	2
Intel Virtualization Technology (VT-x) ‡	Yes
Security & Reliability
Intel AES New Instructions	Yes
Intel Trusted Execution Technology ‡	Yes

Specifikace produktů

Druh optické mechaniky	Bez optické mechaniky
Grafický čip	Intel HD
Provedení PC	Mini-PC
Rozhraní	HDMI, USB 2.0, USB 3.0, USB 3.1, DisplayPort
Řada procesoru	Intel Core i5
Výbava PC	Integrovaná GPU
Využití PC	Domácnost a kancelář
