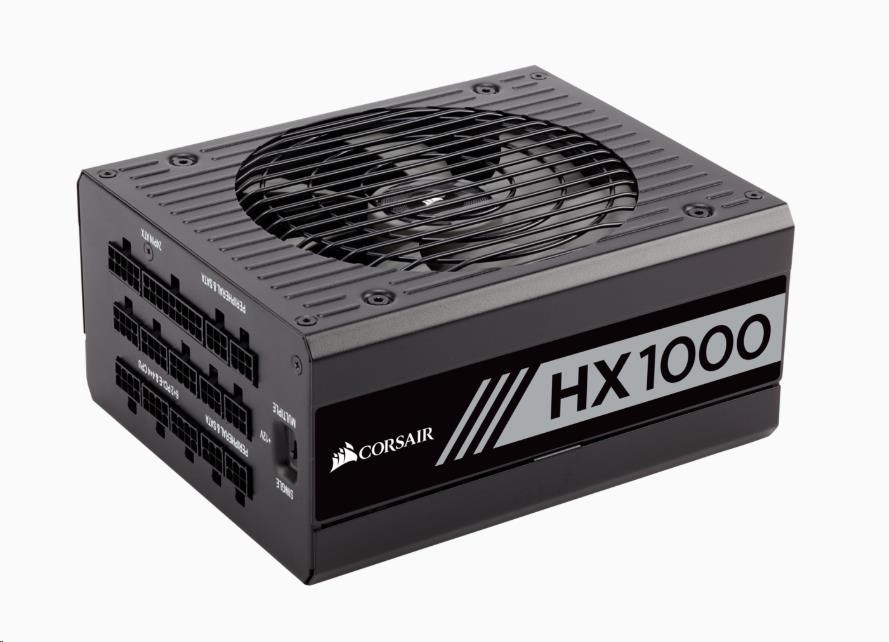

CORSAIR zdroj, HX1000-80 PLUS® PLATINUM Certified PSU (ATX, 1000W, Modular)

CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential.

80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.

Premium internal components ensure solid power delivery and long term reliability.

Your guarantee of reliable operation that will last across several system builds.

Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.

Toggle single +12V rail or multi +12V rail mode. In the “SINGLE” position, the full output capability of the power supply’s +12V rail is available to any and all connectors, while in the “MULTIPLE” position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.

The fully modular DC cables make builds and upgrades easy, with clean, great-looking results.

TECHNICAL SPECIFICATIONS

ATX Connector	1
Adjustable Single/Multi 12V Rail	No
ATX12V Version	v2.4
Continuous output rated temperature	50°C
Continuous power	1000 W
Corsair Link Support	No
Fan bearing technology	Fluid Dynamic Bearing
Fan size	135mm
MTBF hours	100,000 hours
Multi-GPU ready	Yes
Warranty	2 years
80 PLUS Efficiency	Platinum
PSU Form Factor	ATX
iCUE Compatibility	No
Zero RPM Mode	Yes
Cable Type	Low-Profile, All Black
C-Link Ready	No
Dimensions	150 x 86 x 180mm
EPS Connector	2
EPS12V Version	v2.92
Floppy Connector	1
Intel C6C7 sleep state compatible	Yes
Modular	Fully
PCI-E Connector	8
Plug Type	EU
SATA Connector	16
PATA Connector	8
Modern Standby Compatible	No
Protection Circuits	OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)
