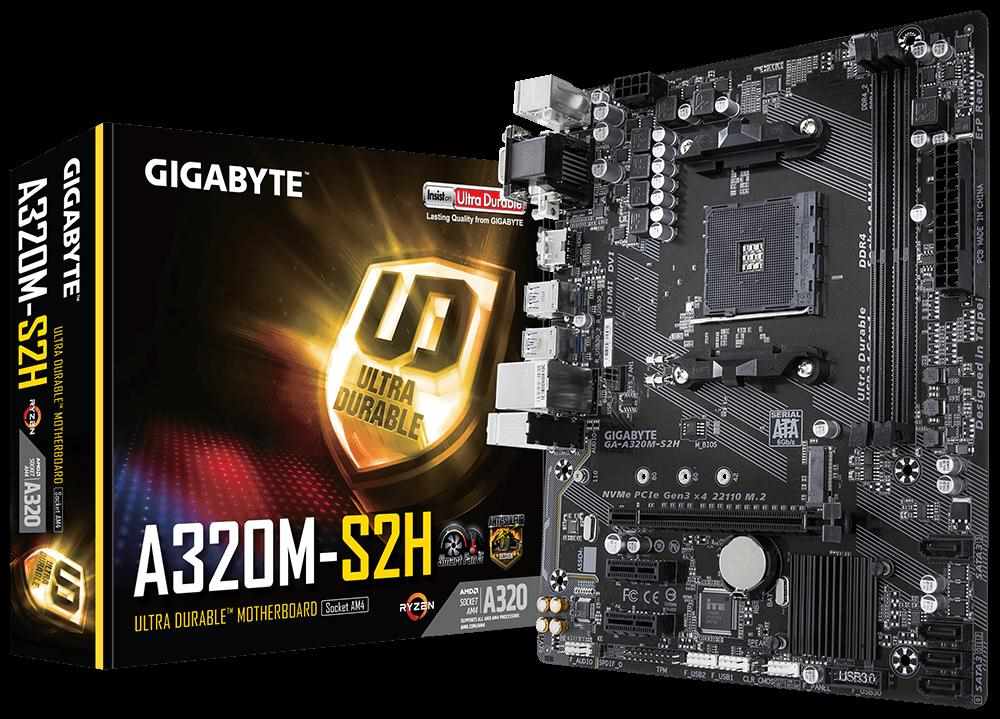

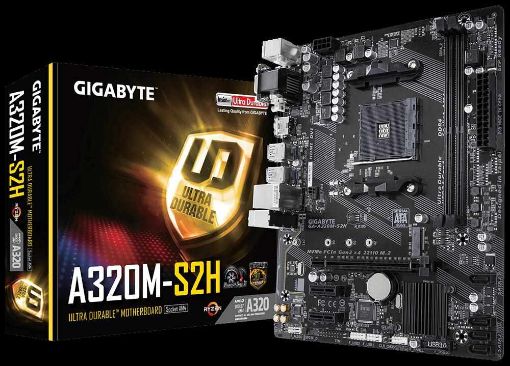

    GIGABYTE MB Sc AM4 A320M-S2H (rev. 3.0), AMD A320, 2xDDR4, 1xHDMI, 1xDVI, VGA, mATX

    Výrobce: Gigabyte
    Buďte první, kdo napíše recenzi tohoto produktu
    Kód: XCH9403
    Typové označení výrobce : GA-A320M-S2H 3.0
    GTIN (EAN): 4719331802585
    Záruka: 36 Měsíců
    sumarum.instocktable.warehouse sumarum.instocktable.countstored
    E-shop 42 ks
    Externí 2 ks
    Prodejna P-4 0 ks
    1 544,32 Kč s DPH
    1 276,30 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    GA-A320M-S2H (rev. 3.0)

    AMD A320 Ultra Durable Motherboard with Hybrid Digital VRM Solution, NVMe PCIe 3.0 x4 22110 M.2, Realtek GbE LAN with cFosSpeed, Smart Fan 5, 3 Display Interfaces, Anti-Sulfur Resistors Design

    • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
    • Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2
    • Multiple Display with HDMI, DVI and D-Sub
    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
    • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
    • Anti-Sulfur Resistors Design

    TECHNICAL SPECIFICATIONS

    CPU
    		 AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
    Chipset
    		 AMD A320
    Memory
    		 - 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    - Dual channel memory architecture
    - Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Actual support may vary by CPU.
    - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    - Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Onboard Graphics
    Integrated Graphics Processor:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB
    * Actual support may vary by CPU.
    Audio
    		 - Realtek audio codec
    - High Definition Audio
    - 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    - Support for S/PDIF Out
    LAN
    		 Realtek GbE LAN chip (10/100/1000 Mbit)
    Expansion Slots
    		 - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    - 2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Storage Interface
    		 - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
    * Actual support may vary by CPU.
    - 4 x SATA 6Gb/s connectors
    - Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    (Note) Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    USB
    Chipset:

    2 x USB 3.1 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:

    4 x USB 3.1 Gen 1 ports on the back panel
    Internal I/O Connectors
    		 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    1 x speaker header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Back Panel Connectors
    		 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks (Line In, Line Out, Mic In)
    I/O Controller
    		 iTE I/O Controller Chip
    H/W Monitoring
    		 - Voltage detection
    - Temperature detection
    - Fan speed detection
    - Overheating warning
    - Fan fail warning
    - Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    		 - 1 x 128 Mbit flash
    - Use of licensed AMI UEFI BIOS
    - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled Software
    		 - Norton Internet Security (OEM version)
    - cFosSpeed
    Operating System
    		 - Support for Windows 10 64-bit
    - Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    Form Factor
    		 Micro ATX Form Factor; 24.4cm x 19.5cm

    Specifikace produktů
    Formát micro ATX
    Chipset AMD
    Integrovaná grafická karta Ano (CPU)
    Integrovaná LAN karta 1
    PCI express 16x 1
    Podpora RAID 1, 10
    Rozhraní HDMI, VGA, DVI, USB 2.0, USB 3.1, 3.5mm jack
    Socket (patice) Socket AM4
    Technologie paměti RAM DDR4
