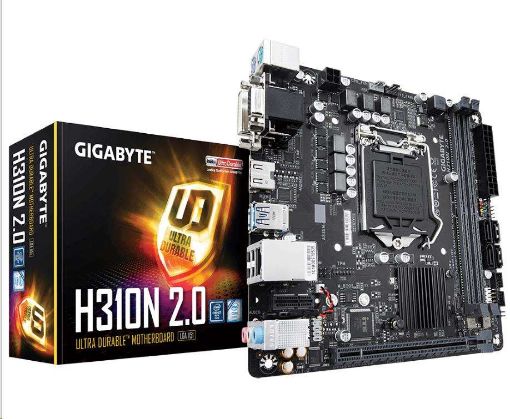

    Obrázek GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX Obrázek GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX Obrázek GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX Obrázek GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX Obrázek GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX

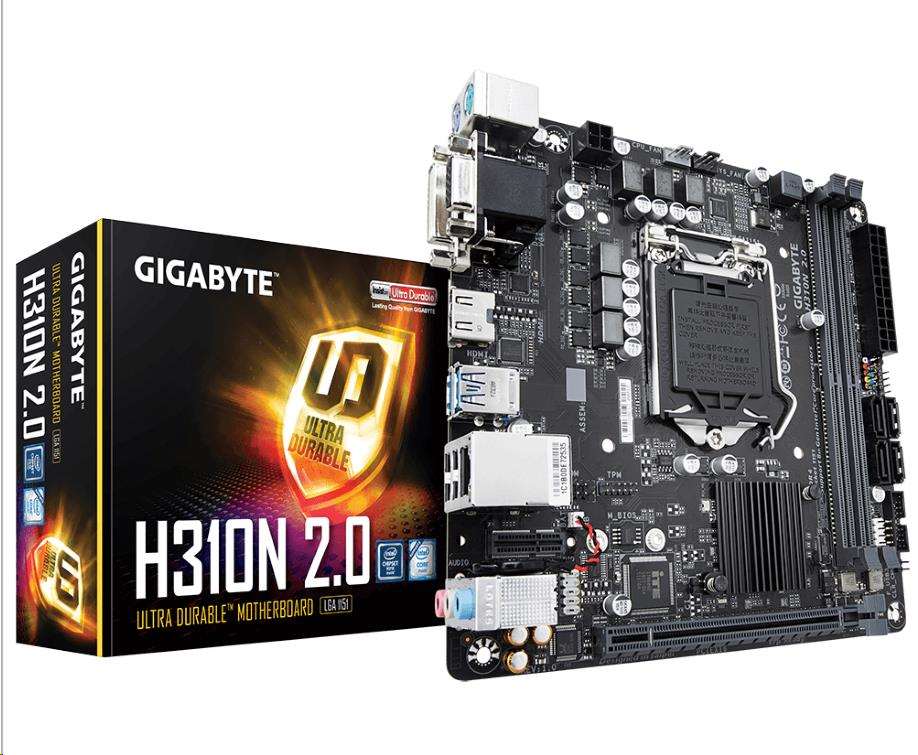

    GIGABYTE MB Sc LGA1151 H310N 2.0, Intel H310, 2xDDR4, VGA, mini-ITX

    Výrobce: Gigabyte
    Kód: KMB9892
    Typové označení výrobce : H310N 2.0
    GTIN (EAN): 4719331805432
    Záruka: 36 Měsíců
    sumarum.instocktable.warehousesumarum.instocktable.countstored
    E-shop 0 ks
    Prodejna P-4 0 ks
    1 947,13 Kč s DPH
    1 609,20 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    H310N 2.0 (rev. 1.0)

    Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

    • Supports 9th and 8th Gen Intel Core™ Processors
    • Ultra-Fast M.2 with PCIe Gen2 X4 & SATA interface
    • Dual Channel Non-ECC Unbuffered DDR4
    • 8-Channel HD Audio with High Quality Audio Capacitors and Audio Noise Guard
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • CEC 2019 Ready, Save Power With a Simple Click
    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    • All new GIGABYTE™ APP Center, simple and easy use
    • Anti-Sulfur Resistors Design

    TECHNICAL SPECIFICATIONS

    CPU
    1. Support for 9th and 8th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
    Chipset
    1. Intel H310 Express Chipset
    Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core™ i9/i7/i5 processor.
    (Please refer "Memory Support List" for more information.)
    Onboard Graphics
    		Integrated Graphics Processor-Intel HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2..
    Maximum shared memory of 1 GB
    Support for up to dual displays at the same time
    Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x M.2 Socket 1 connector for the PCIe wireless communication module (M2_WIFI)
    Storage Interface
    		Chipset:
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    USB
    		Chipset:
    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    LAN
    1. Realtek GbE LAN chip (10/100/1000 Mbit)
    Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 2 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 4 x SATA 6Gb/s connectors
    6. 1 x M.2 Socket 3 connector
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x speaker header
    10. 1 x USB 3.1 Gen 1 header
    11. 1 x USB 2.0/1.1 header
    12. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper
    I/O Controller
    1. iTE I/O Controller Chip
    H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
    Bundle Software
    1. Norton Internet Security (OEM version)
    2. Realtek 8118 Gaming LAN Bandwidth Control Utility
    Operating System
    1. Support for Windows 10 64-bit
    Form Factor
    1. Mini-ITX Form Factor; 17.0 x 17.0cm

    Specifikace produktů
    FormátMini-ITX
    ChipsetIntel
    Integrovaná grafická kartaAno (CPU)
    Integrovaná LAN karta1
    PCI express 16x1
    Podpora RAIDBez RAID podpory
    RozhraníHDMI, VGA, USB 2.0, USB 3.1, 3.5mm jack, LAN, DVI
    Socket (patice)Socket 1151
    Technologie paměti RAMDDR4
    *
    *
    *
