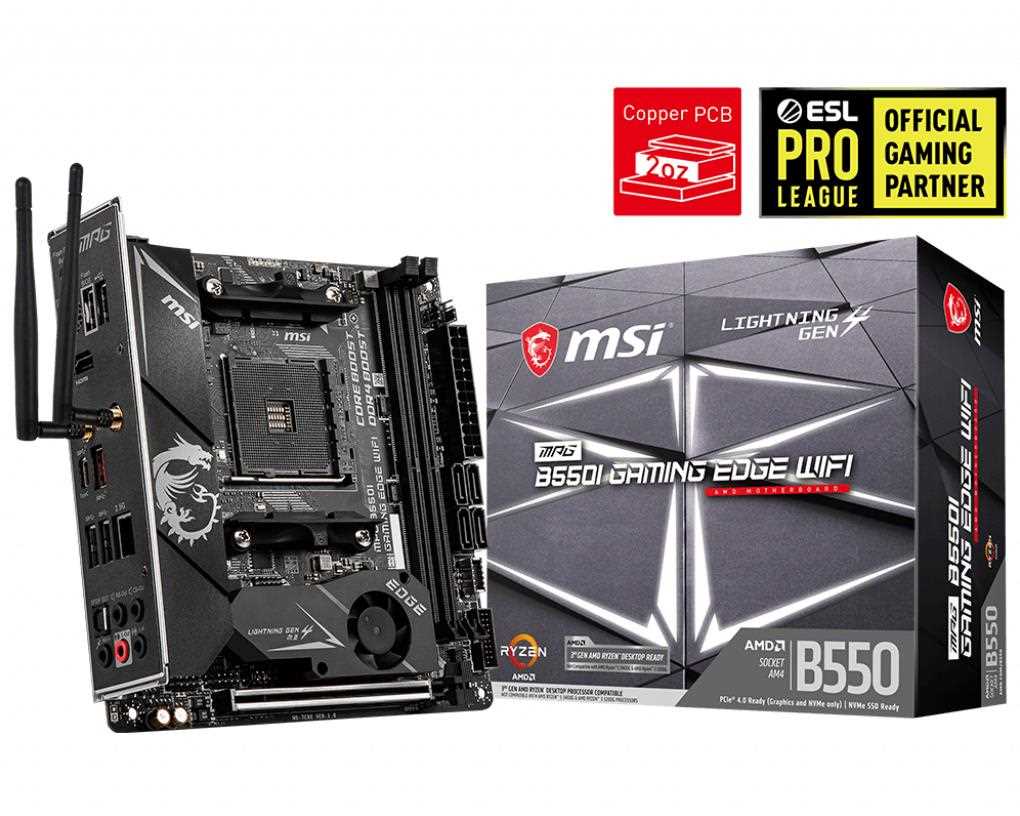

MSI MB Sc AM4 MPG B550I GAMING EDGE WIFI, AMD B550, 2xDDR4, VGA, mini-ITX, Wi-Fi

• 2x DDR4 memory slots, support up to 64GB
• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/
• 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600+ MHz by A-XMP OC MODE
• 1DPC 1R max speed 4600 MHZ
• 1DPC 2R max speed 4000 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports un-buffered memory
• Please refer www.msi.com for more information on compatible memory.

• 1x PCIe 4.0/ 3.0 x16 slot 1
  The supported specification depends on installed processor.

• 1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
• Maximum shared memory of 2048 MB
  Available for the processor with integrated graphics.

AMD B550 Chipset

• 4x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
• M2_1 slot (from AMD Processor)
• Supports PCIe 4.0/ 3.0 x4
• Supports SATA 6Gb/s
• Supports 2260/ 2280 storage devices
• M2_2 slot (from AMD B550 chipset)
• Supports PCIe 3.0x4
• Supports 2280 storage devices

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

• Realtek ALC1200 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output

• 1x Realtek RTL8125B 2.5Gbps LAN controller

Intel AX200

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.1

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x 3-pin RAINBOW LED connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 4x EZ Debug LED

• USB 2.0
• Wi-Fi / Bluetooth
• USB 3.2 Gen 2 10Gbps (Type-A)
• LAN Port
• HD Audio Connectors
• BIOS Flashback Button
• PS/2 Combo Port
• HDMI Port
• USB 3.2 Gen 2 10Gbps (Type-C)
• USB 3.2 Gen 1 5Gbps (Type-A)
• Optical S/PDIF OUT

• NUVOTON NCT6687-R Controller Chip

• Mini-ITX Form Factor
• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
