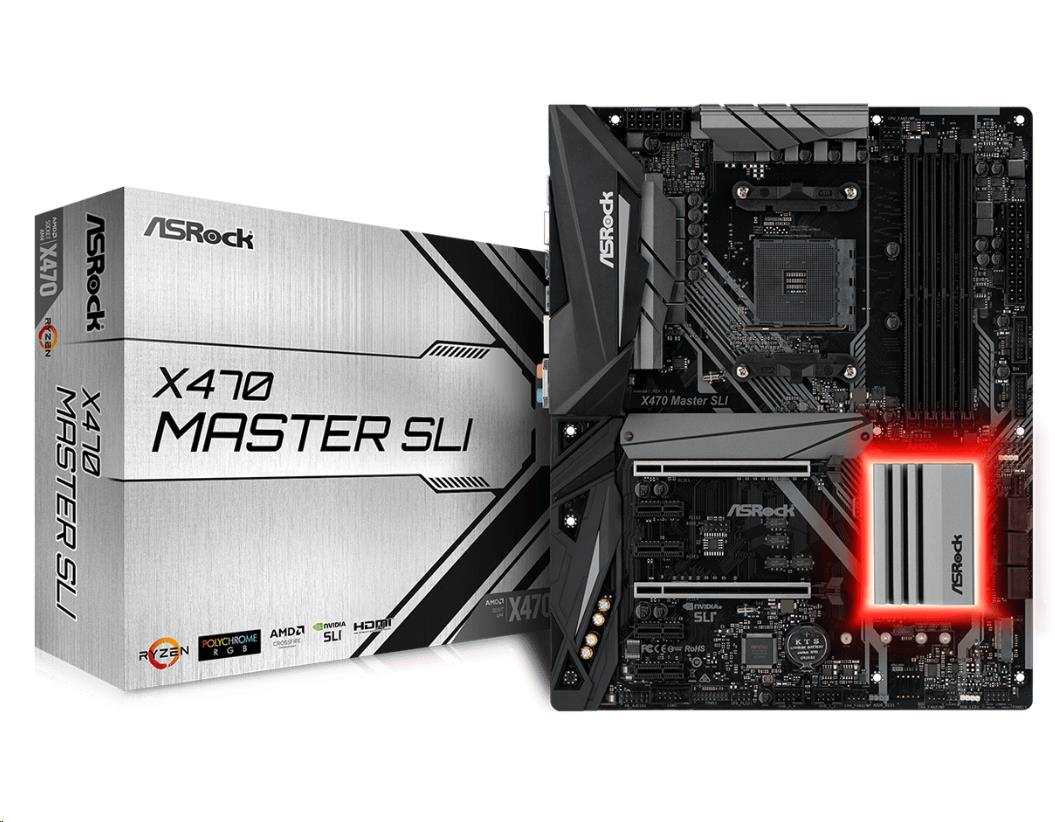

ASRock MB Sc AM4 X470 MASTER SLI, AMD X470, 4xDDR4, VGA

Výrobce: ASRock

Kód: KMB9679

Typové označení výrobce : X470 MASTER SLI

GTIN (EAN): 4717677335613

Záruka: 36 Měsíců

sumarum.instocktable.warehouse	sumarum.instocktable.countstored
E-shop	0 ks
Prodejna P-4	0 ks

3 045,09 Kč s DPH

2 516,60 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Kontaktujte nás

X470 Master SLI

Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Supports DDR4 3466+ (OC)
2 PCIe 3.0 x16, 4 PCIe 2.0 x1
NVIDIA Quad SLI™, AMD Quad CrossFireX™
Graphics Output: HDMI
7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3)
2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear)
Intel Gigabit LAN

TECHNICAL SPECIFICATIONS

Unique Feature	ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 45A Power Choke - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) - Digi Power design - 12 Power Phase design - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset	- AMD Promontory X470
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - 15µ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): see more info https://www.asrock.com/MB/AMD/X470%20Master%20SLI/index.us.asp#Specification
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Graphic	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Max. shared memory 2GB - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU
Slots	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ - 15µ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks *This feature is only supported with Ryzen Series CPUs (Summit Ridge and Pinnacle Ridge).
Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)* - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps
Connector	- 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header* - 1 x RGB LED Header - 1 x Addressable LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. Supports in total up to 12V/3A, 36W LED Strip Supports in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock A-Tuning - ASRock Polychrome RGB - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x Screws for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Operating System	- Microsoft Windows 10 64-bit
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Specifikace produktů

Další rozhraní	S/PDIF
Formát	ATX
Chipset	AMD
Integrovaná grafická karta	Ne
Integrovaná LAN karta	1
PCI express 16x	Více než 1
Podpora RAID	1, 10
Rozhraní	HDMI, USB 3.1, 3.5mm jack, LAN, USB Type-C
Socket (patice)	Socket AM4
Technologie paměti RAM	DDR4
