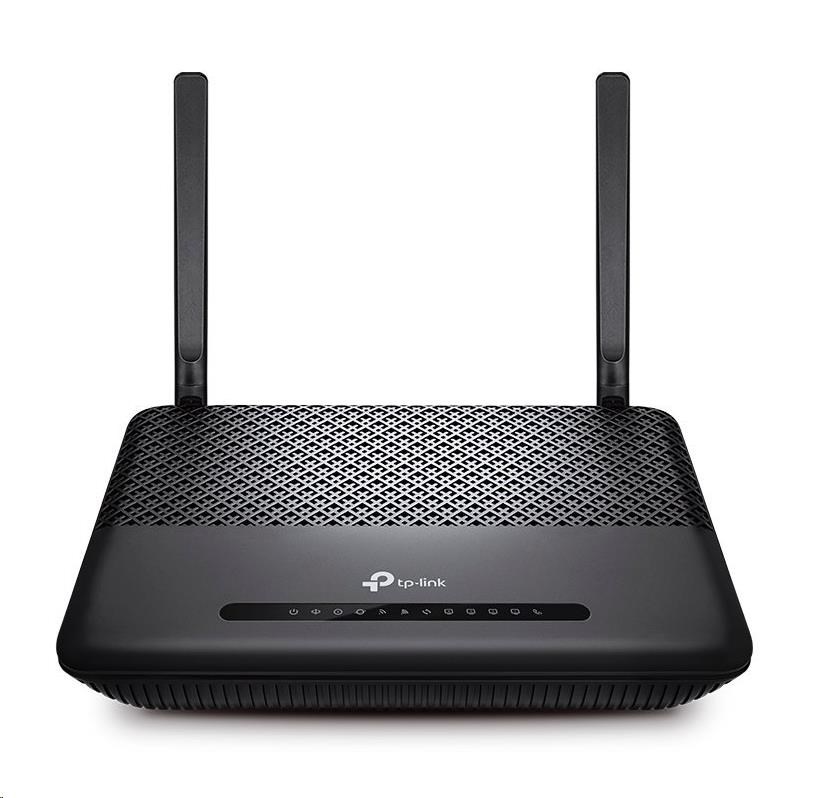

TP-Link XC220-G3v je Gigabitový GPON router s 802.11ac WiFi, dvěmi fixními anténami , 4x Gigabit LAN a integrovanou bránou pro VoIP volání. Router je ideální zařízení pro FTTH (fiber to the home) instalaci. Jedná se o ONU jednotku s jedním optickým portem typu SC s APC broušením, dosahem 20 km, vlnovou délkou 1310/1490 nm a rychlostí 1,244/2,488 Gbps.
HARDWARE FEATURES | |
| Interface | 4 10/100/1000Mbps RJ45 LAN Ports, 1 SC/APC GPON Port, 1 RJ11 FXS Port |
| Button | Power On/Off Button, WPS/Wi-Fi Button, RESET Button |
| External Power Supply | 12V/1.5A |
| Antenna | 2 External Dual Band Antennas |
WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz (not Supports DFS) |
| Signal Rate | 867Mbps at 5GHz, 300Mbps at 2.4GHz |
| Transmit Power | 2.4GHz: 26dBm(EIRP), 5GHz: 27dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
| Mesh Technology | no support |
SOFTWARE FEATURES | |
| Quality of Service | Hardware QoS |
| Security | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death” |
| Management | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| Protocols | Supports IPv4 and IPv6 |
| VOIP Features | Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts |
| Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
OTHERS | |
| Package Contents | AC1200 Wireless VoIP GPON Router
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
