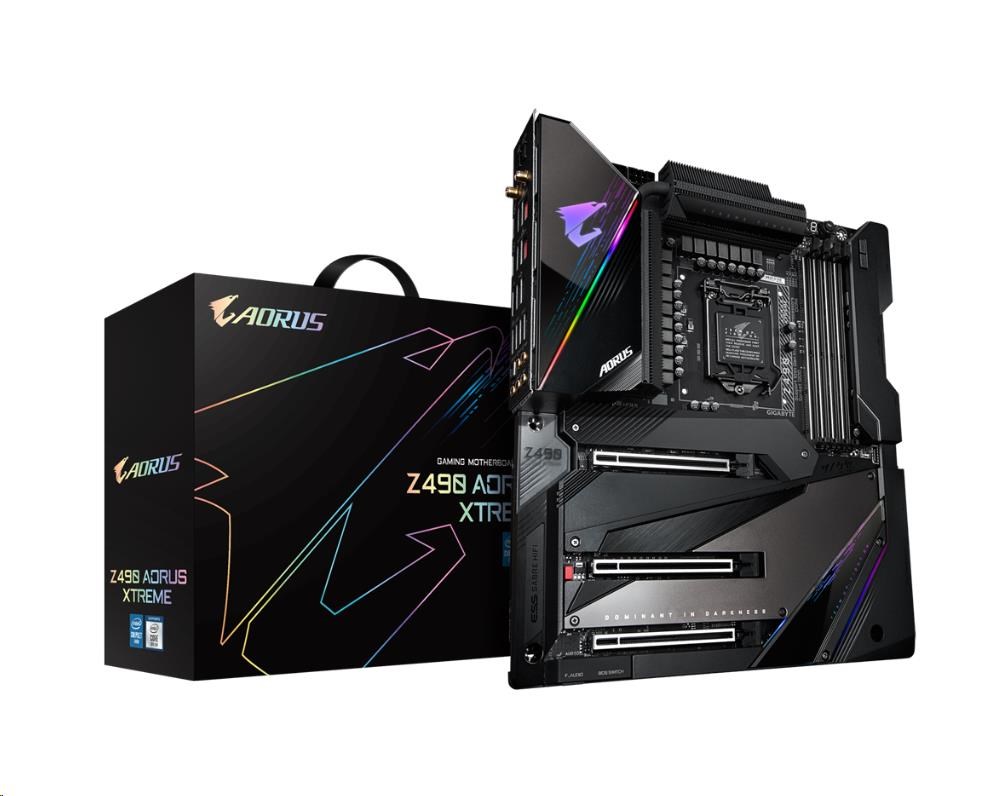

GIGABYTE MB Sc LGA1200 Z490 AORUS XTREME 1.1, Intel Z490, 4xDDR4, 1xHDMI, WI-FI, E-ATX

Z490 AORUS XTREME

Intel Z490 AORUS Motherboard with 16+1 Phases Digital VRM, Fins-Array II Heatsink, Direct-Touch Heatpipe II ,NanoCarbon Baseplate, Intel Thunderbolt 3, ESSential USB DAC, Intel WiFi 6 802.11ax, AQUANTIA 10GbE LAN, Intel 2.5GbE LAN, RGB FUSION 2.0

• Supports 10th Gen Intel Core™ Processors and 11th Gen Intel Core™ Processors*
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel Optane™ Memory Ready
• 16+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
• XTREME MEMORY with SMT DIMM and Shielded Memory Routing
• Thermal Reactive Armor with Fins-Array II Heatsink, Direct Touch Heatpipe II and NanoCarbon Baseplate
• Intel Thunderbolt™ 3 Onboard
• Exclusive ESSential USB DAC
• Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
• 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA Audio Capacitors
• AQUANTIA 10GbE BASE-T LAN and Intel 2.5GbE LAN with cFosSpeed
• Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• * Updated BIOS is required for compatibility.

CPU

Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/ Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel Z490 Express Chipset

Memory

Intel Core™ i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor+Intel Thunderbolt™ 3 Controller:
2 x Intel Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB

Audio

Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Wireless Communication module

Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Multi-Graphics Technology

Support for NVIDIA Quad-GPU SLI™ and 2-Way NVIDIA SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB

Chipset+Intel Thunderbolt™ 3 Controller:
2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)

Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x noise detection header
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC button
2 x BIOS switches
Voltage Measurement Points

Back Panel Connectors

1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection

BIOS

2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
System Information Viewer
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System

Support for Windows 10 64-bit

Form Factor

E-ATX Form Factor; 30.5cm x 27.1cm
